Product Description

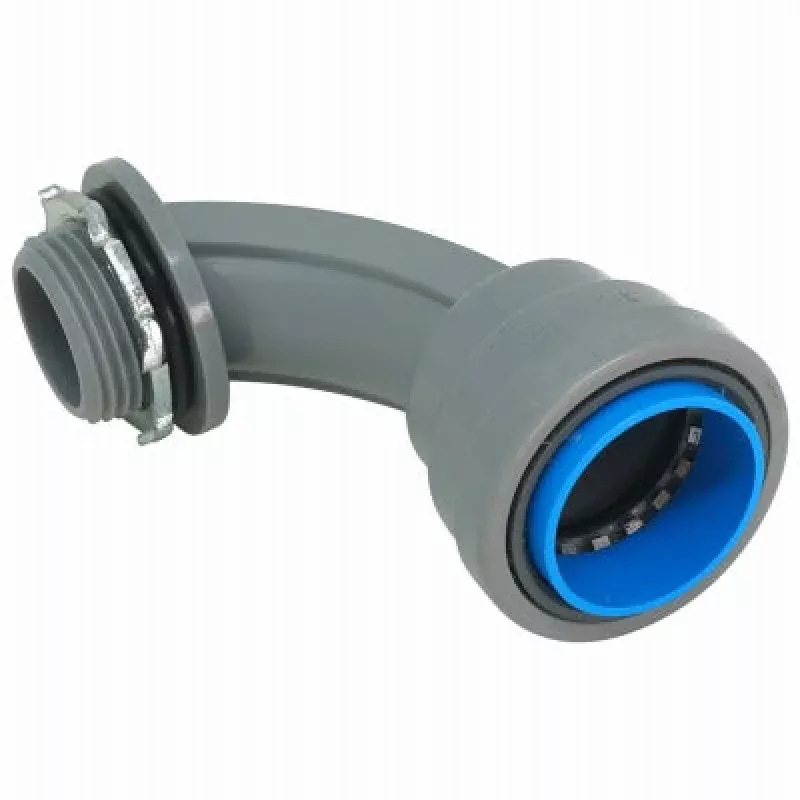

The SOUTHWIRE/COLEMAN CABLE 67600301 is a 3/4-inch liquid tight non-metallic push-to-install 90-degree elbow fitting designed for fast, tool-free conduit connections. This fitting secures liquid tight conduit directly to electrical boxes using a push-to-install mechanism, eliminating the need for wrenches or additional hardware. Manufactured from UV-resistant resin and corrosion-resistant, copper-free aluminum, the 67600301 is built for demanding environments. Electricians and conduit installers use this fitting where a right-angle liquid tight termination is required without slowing down rough-in work. Each package contains 10 fittings.
This elbow fitting is suited for residential and commercial electrical installations where liquid tight non-metallic conduit meets a junction box or enclosure at a 90-degree angle. It is rated for direct burial, watertight, and concrete-tight applications, making it appropriate for underground runs, outdoor enclosures, wet locations, and embedded-in-concrete conduit paths. The fitting is intended for use with non-metallic type B liquid tight conduit. UL and CSA listed for compliance with standard electrical code requirements.
Key Features
- Push-to-install design allows tool-free, hand-only installation for faster rough-in
- 90-degree elbow configuration for right-angle conduit-to-box transitions
- UV-resistant resin construction for outdoor and exposed-location durability
- Corrosion-resistant, copper-free aluminum components
- Rated for direct burial, watertight, and concrete-tight applications
- UL and CSA listed
Compatibility
Designed for use with non-metallic liquid tight type B conduit in 3/4-inch trade size. Suitable for standard electrical enclosures and junction boxes with knockout openings of the corresponding trade size.
Installation Notes
Installation is performed by licensed electricians in accordance with the National Electrical Code (NEC). De-energize all circuits in the work area before making conduit connections to any enclosure. Push the conduit firmly into the fitting until fully seated to ensure a watertight seal. For direct burial or concrete-encased applications, confirm the fitting is fully engaged and that the conduit run is supported per applicable code requirements before covering.
Technical Specifications
- Trade Size: 3/4 inches
- Fitting Type: 90-Degree Elbow
- Connection Method: Push-to-install (tool-free)
- Conduit Type Compatibility: Non-metallic liquid tight type B
- Material: UV-resistant resin body, corrosion-resistant copper-free aluminum
- Application Rating: Direct burial, watertight, concrete tight
- Listings: UL, CSA
- Package Quantity: 10 per package
- Weight: 1.5 pounds
Standard Information
- Brand: SOUTHWIRE/COLEMAN CABLE
- Manufacturer Part Number: 67600301
