Product Description

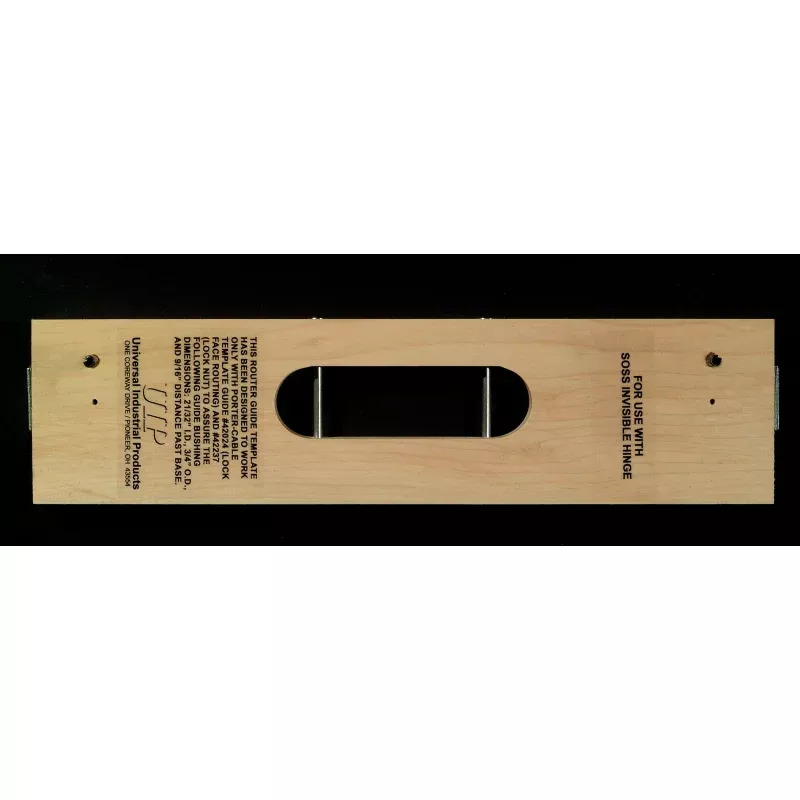

The SOSS / UIP ALLEGION 218IT is a router guide template designed to simplify accurate mortise cutting for the SOSS 218 series invisible hinges. The template acts as a precision jig, guiding a router to cut the exact recess depth and profile required for a flush, concealed hinge installation. Measuring 17 inches in length, 3.9 inches in width, and 1.9 inches in height, it provides a stable, repeatable setup for both door and frame mortises. Carpenters, millwork installers, and commercial door hardware technicians rely on this type of template to reduce layout time and eliminate manual measurement errors during hinge installation.
This router guide template is used when installing SOSS 218 invisible hinges in residential and commercial door applications. Invisible hinges are commonly specified for interior wood doors where a clean, hardware-free appearance is required. The template supports consistent mortise placement across multiple doors, making it well-suited for production millwork shops and on-site door hanging crews. It is sold individually as a single unit.
Key Features
- Designed specifically for use with SOSS 218 series invisible hinges
- Guides router for accurate, repeatable mortise cuts on door and frame
- 17-inch length accommodates full hinge layout in a single setup
- Compact profile at 3.9 inches wide and 1.9 inches tall for easy positioning
- Reduces layout time and minimizes measurement error on production runs
Compatibility
Designed for use with SOSS 218 series invisible hinges. Confirm hinge series before ordering, as router guide templates are model-specific and are not interchangeable across different SOSS hinge size designations.
Installation Notes
Installation of this template is performed by carpenters or door hardware installers. Before routing, secure the door or frame blank firmly to prevent movement. Use a plunge router with the appropriate straight bit diameter as specified for the 218 hinge series. Always wear appropriate eye and hearing protection when operating routing equipment.
Technical Specifications
- Length: 17 inches
- Width: 3.9 inches
- Height: 1.9 inches
- Weight: 0.8 pounds
- Sales Unit: Each
Standard Information
- Brand: SOSS / UIP ALLEGION
- Manufacturer Part Number: 218IT
