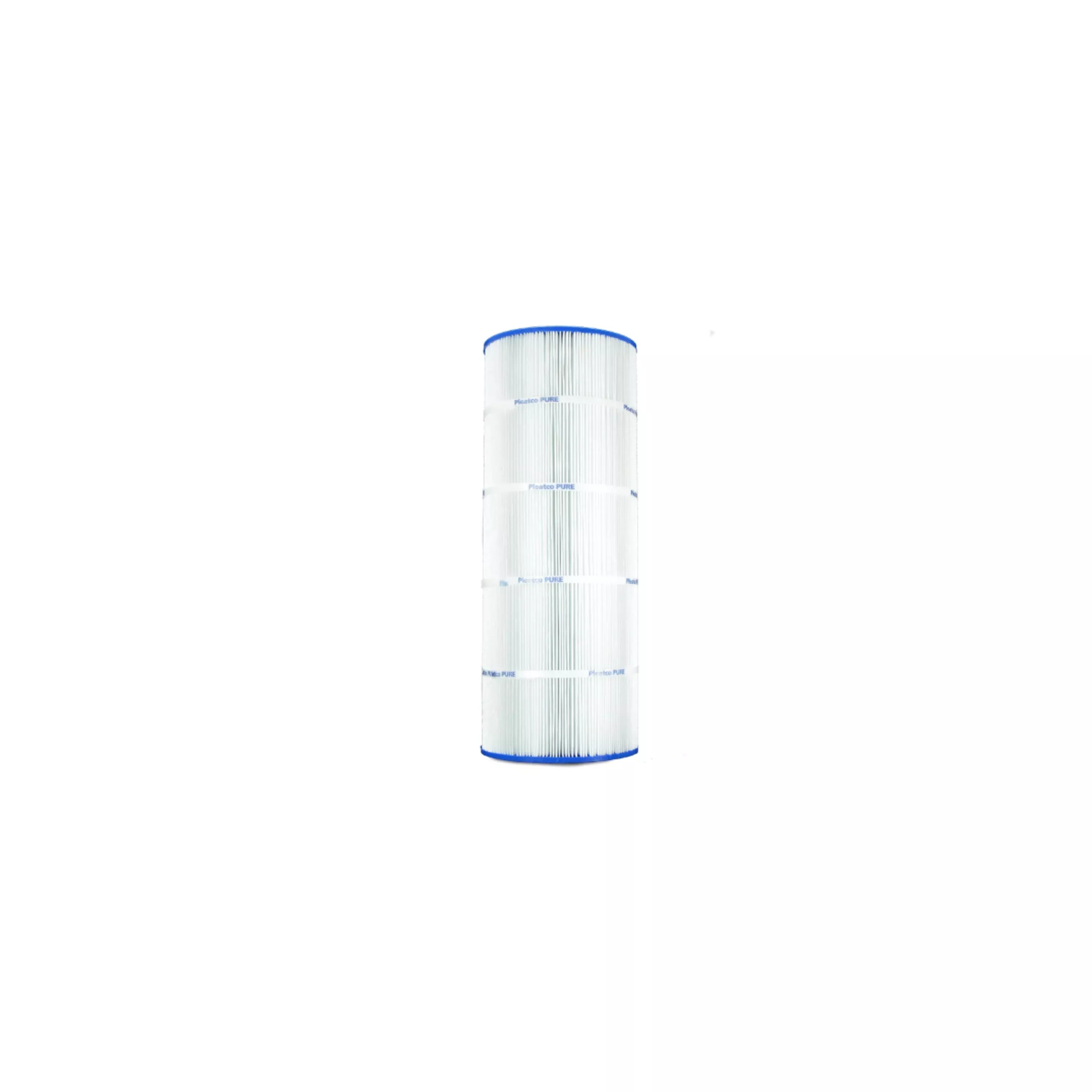

The PA100-EC is the replacement cartridge for the Hayward Star-Clear II C1100
Replaces: 19905 , 46123 , 4902-118 , 609440 , AK-7010 , C-8610 , CX1100RE , FC-1290 , PA100-N , SC820
Dimensions:
Diameter: 8-1/2″
Length: 23-1/8″
Top: 4″ Open
Bottom 4″ Open
Features:
- Pleatco Free Flow Cores
Engineered ABS for great flow. Pleatco’s unique Free Flow Cores MAXIMIZE filtration performance of the entire cartridge by delivering optimized water flow to a large surface area of the filtration fabric to capture dirt particles. Pleatco Cores are highly engineered, incredibly strong molded ABS.
- Reinforced Center Cores
Our meticulously engineered center cores allow for increased dirt loading and high pressures while providing ultra-solid protection for the structural integrity of the cartridge.
- Super-bond Bands
Pleatco break-resistant super-bond bands are sealed tight to the filtration fabric with an incredibly strong unique bonding process keeping the pleats sharp and separated for good flow and performance.
- Pleatco Advanced Filtration Fabrics
High fiber count – Engineered for high dirt holding capacity. Pleatco Advanced Filtration Fabrics are a uniformly point bonded media with HIGH FIBER COUNT and reduced pore size distribution offers rapid cleaning and dirt holding capacity, delivering low pressures and high flow rates forexcellent cleaning results.
- Strong End Caps
Pleatco end-caps are break resistant, with ergonomic handles and easily identifiable part numbers
