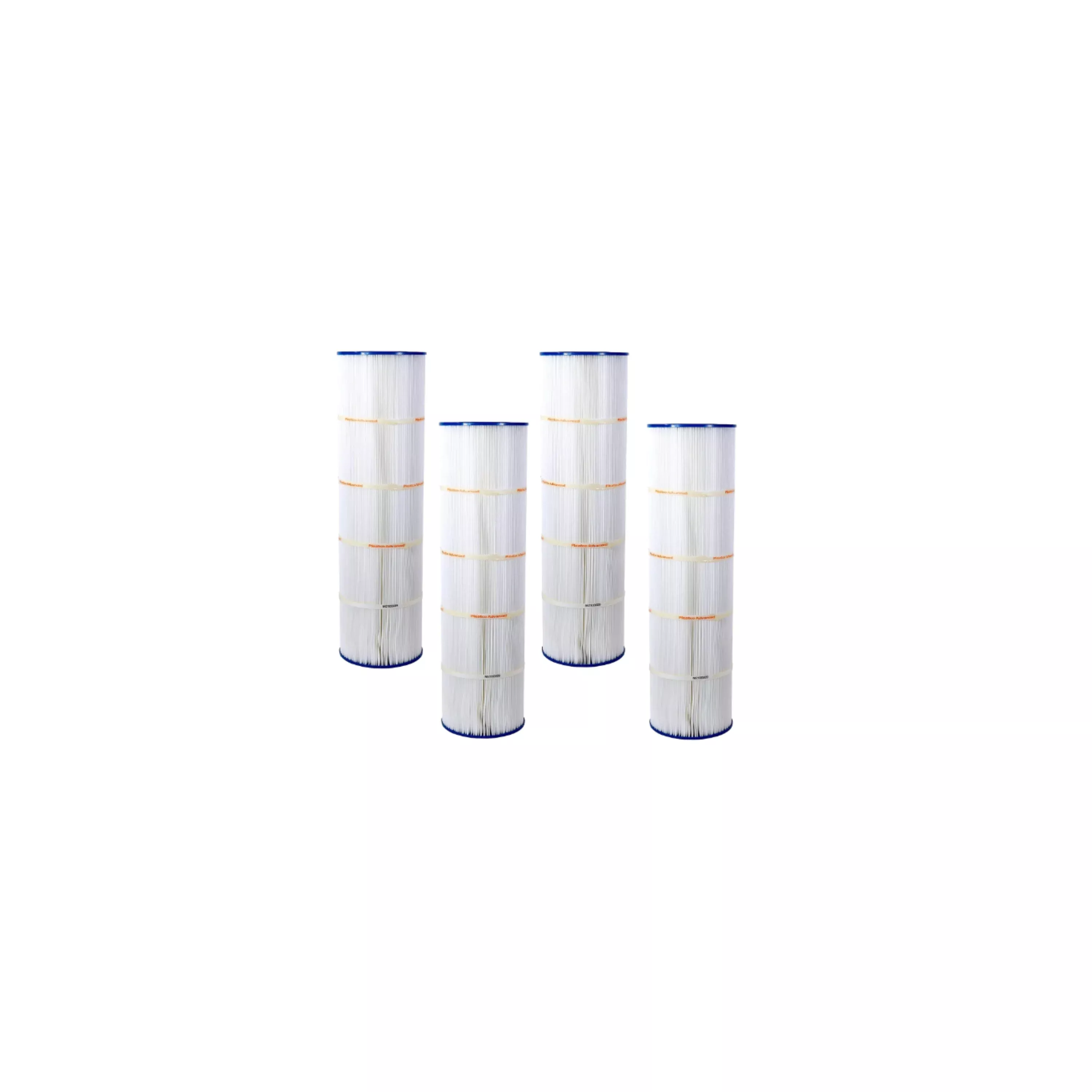

The PCC105-PAK4-EC is a complete set of replacement cartridges for the Pentair Clean & Clear Plus 420, 520 (pre 1998), American Quantum CM & RPM 125/500, Waterway Crystal Water 425. It is a set of 4.
Replaces: 20503 , 20503ECO , 303956 , 4900-464 , 609351 , 817-0106 , AK-60431 , C-7471 , C-7471-4 , FC-1977 , FC-3432 , FC-34324 , PCC105 , PCC105-M , PCC105-PAK4 , PWW105 , R173576 , R178584
Dimensions:
Diameter: 7″
Length: 26-1-16″
Top: 3″ Open
Bottom: 3″ Open
Features:
- Pleatco Free Flow Cores
Engineered ABS for great flow. Pleatco’s unique Free Flow Cores MAXIMIZE filtration performance of the entire cartridge by delivering optimized water flow to a large surface area of the filtration fabric to capture dirt particles. Pleatco Cores are highly engineered, incredibly strong molded ABS.
- Reinforced Center Cores
Our meticulously engineered center cores allow for increased dirt loading and high pressures while providing ultra-solid protection for the structural integrity of the cartridge.
- Super-bond Bands
Pleatco break-resistant super-bond bands are sealed tight to the filtration fabric with an incredibly strong unique bonding process keeping the pleats sharp and separated for good flow and performance.
- Pleatco Advanced Filtration Fabrics
High fiber count – Engineered for high dirt holding capacity. Pleatco Advanced Filtration Fabrics are a uniformly point bonded media with HIGH FIBER COUNT and reduced pore size distribution offers rapid cleaning and dirt holding capacity, delivering low pressures and high flow rates forexcellent cleaning results.
- Strong End Caps
Pleatco end-caps are break resistant, with ergonomic handles and easily identifiable part numbers
