Raypak 010232F Natural Gas Pilot Assembly (IID) – Low NOx Heaters

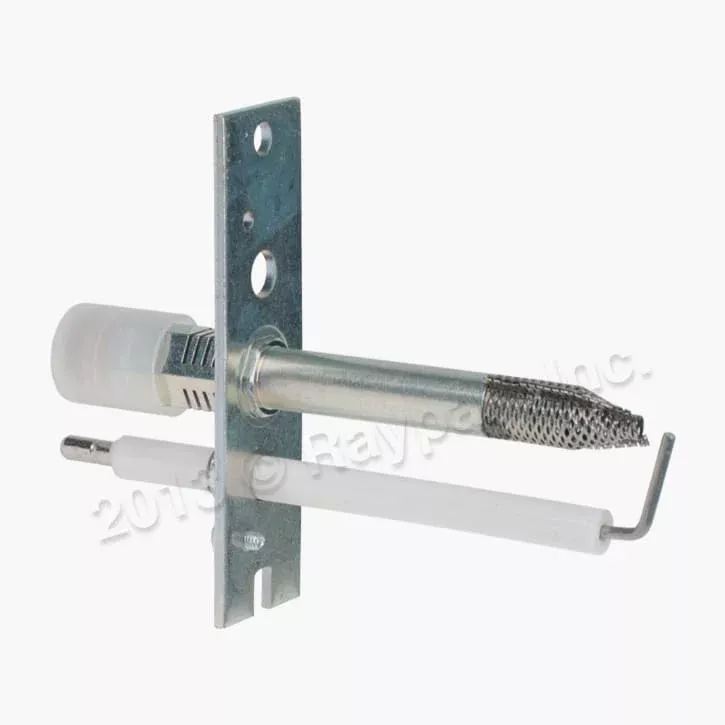

The Raypak 010232F is a replacement natural gas pilot assembly for Raypak IID (intermittent ignition) Digital Low NOx pool and spa heaters. This pilot assembly helps restore reliable ignition and flame sensing when the existing pilot is corroded, damaged, clogged, or producing intermittent lighting issues.
Key Details
- Part Number: 010232F
- Fuel Type: Natural Gas (NG)
- Ignition Type: IID (Intermittent Ignition Device)
- Heater Type: Digital Low NOx series (pilot assembly for compatible models)
- Function: Provides pilot flame and ignition/flame-sense interface for dependable burner startup
- Typical assembly includes: Pilot burner body with electrode/igniter components (as supplied by the manufacturer)
Common Heater Compatibility
- Commonly used on Raypak R207A, R267A, R337A, and R407A Digital Low NOx IID heaters
- Important: Always confirm by your heater’s model/serial and parts breakdown to ensure the correct pilot for your exact unit and revision.
Common Symptoms This Part Can Fix
- Heater clicks but fails to light consistently
- Intermittent ignition / nuisance ignition lockouts
- Pilot/electrode corrosion or visible damage
- Weak or unstable pilot flame due to pilot blockage or wear
Installation Notes
- Shut off gas and power to the heater before service.
- Handle the electrode carefully—avoid bending or striking it.
- Keep pilot openings clean and free of debris; do not enlarge or modify orifices.
- If ignition issues persist after replacement, inspect related components (wiring, control board, ground/bond, gas pressure, and venting/airflow).
