Product Description

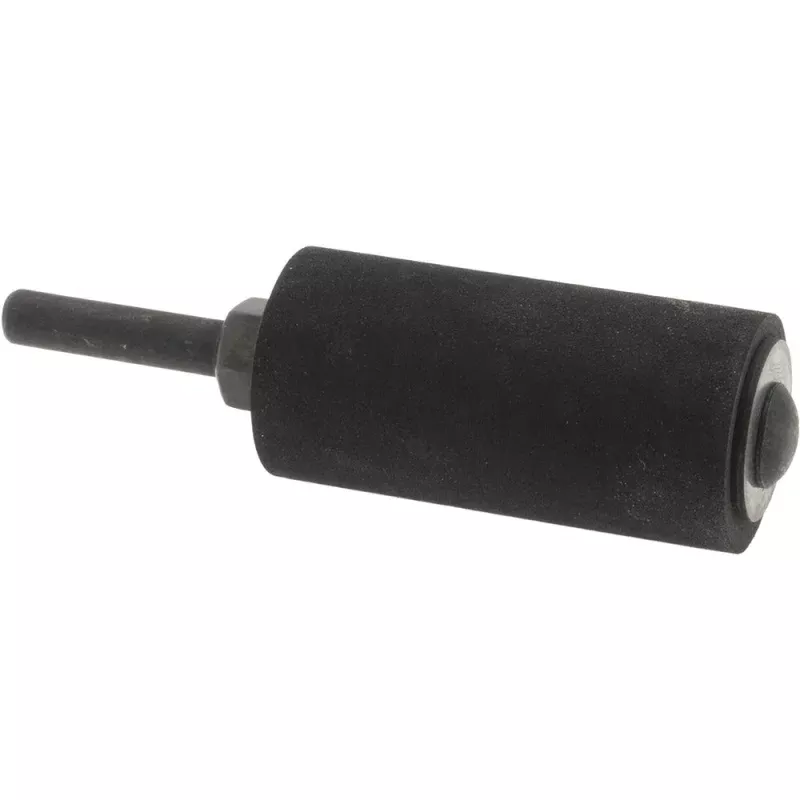

The MERIT ABRASIVES 08834196918 is a spiral band drum designed for use with abrasive sanding sleeves in drum sanding applications. The drum measures 2 inches wide with a 1 inch diameter and accepts a 0.25 inch shank for mounting in a drill press, handheld drill, or rotary tool. It is rated for a maximum speed of 8,000 RPM. This type of drum is used by woodworkers, metalworkers, and trade professionals for shaping, smoothing, and finishing curved or contoured surfaces. The spiral band design helps seat and retain abrasive sleeves securely during operation.
Spiral band drums are used in woodworking shops, metal fabrication settings, and general maintenance environments. They are well suited for finish work on inside curves, irregular profiles, and contoured edges where flat sanding is not practical. The 1 inch diameter and 2 inch width make this drum appropriate for medium-scale shaping tasks on both wood and metal substrates. It is typically mounted in a drill press for stationary work or used freehand in a portable drill for field or bench applications.
Key Features
- 2 inch wide drum provides ample surface contact for shaping and smoothing passes
- 1 inch diameter fits standard abrasive sanding sleeves of matching bore size
- 0.25 inch shank mounts in standard drill chucks and rotary tool collets
- 8,000 RPM maximum speed rating supports use in variable-speed and fixed-speed tools
- Spiral band construction helps retain abrasive sleeves during high-speed operation
Compatibility
Designed for use with 1 inch diameter abrasive sanding sleeves in drill presses, handheld drills, and rotary tools accepting a 0.25 inch shank.
Installation Notes
Installation is performed by inserting the 0.25 inch shank into the tool chuck and tightening securely before use. Always ensure the tool is powered off and unplugged before mounting or removing the drum. Do not exceed the 8,000 RPM maximum speed rating of the drum. Abrasive sleeves should be inspected before each use and replaced if torn or worn through.
Technical Specifications
- Drum Width: 2 inches
- Drum Diameter: 1 inch
- Shank Diameter: 0.25 inch
- Maximum RPM: 8,000
- Weight: 0.3 pounds
Standard Information
- Brand: MERIT ABRASIVES
- Manufacturer Part Number: 08834196918
