Product Description

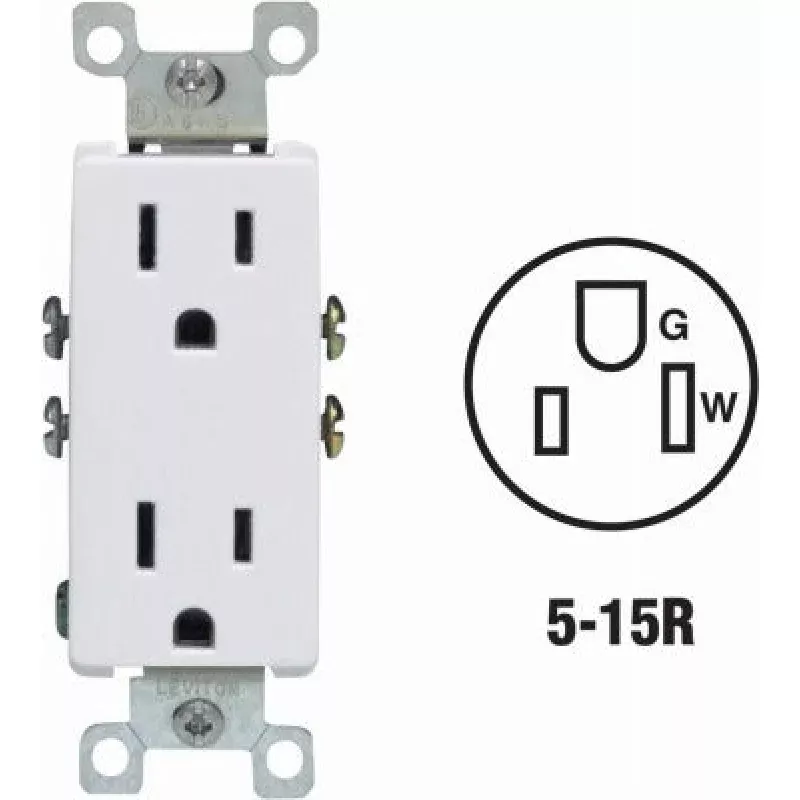

The LEVITON MFG CO S02-05325-0WS is a white Decora-style duplex outlet rated at 15 amps and 125 volts, conforming to NEMA 5-15R configuration. It supports both side-wire and Quickwire push-in wiring methods, giving electricians flexibility during rough-in and finish work. Internal contacts are heavy-duty double-wire brass construction, and the mounting strap is heavy-gauge zinc-plated steel. UL listed and backed by a limited 1-year warranty, this receptacle is suited for residential and light commercial wiring projects where a clean, flush Decora faceplate appearance is required.
This outlet is used in standard 15-amp, 120-volt branch circuits in residential and light commercial settings. Typical installations include bedroom, living area, hallway, and office circuits. The Decora form factor pairs with matching Decora-style switches and GFCI devices for a consistent finish-out look. Electricians commonly install these during new construction or remodel work where standard duplex receptacles are called out on the electrical plan. The package quantity of 10 units per package supports efficient rough-in and trim-out workflows on multi-room jobs.
Key Features
- Dual wiring options: side-wire terminals and Quickwire push-in connections for install flexibility
- Heavy-duty double-wire brass contacts for reliable, long-term conductivity
- Heavy-gauge zinc-plated steel mounting strap for secure, code-compliant installation
- NEMA 5-15R configuration, 15 amps at 125 volts
- UL listed for safety compliance
- Decora-style form factor for flush, modern finish-out appearance
Compatibility
Designed as an OEM-style replacement or new-installation receptacle for standard 15-amp, 125-volt residential and light commercial branch circuits using NEMA 5-15R wiring devices.
Installation Notes
Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). Always de-energize the circuit at the breaker panel and verify absence of voltage with a non-contact tester before beginning any wiring work. Use the side-wire screw terminals for solid or stranded conductors per NEC guidelines; Quickwire push-in terminals are intended for solid wire only unless otherwise marked. Ensure the mounting strap is secured to a listed electrical box rated for the intended use.
Technical Specifications
- Amperage: 15 amps
- Voltage: 125 volts
- NEMA Configuration: 5-15R
- Wiring Method: Side-wire and Quickwire push-in
- Contact Material: Double-wire brass
- Mounting Strap Material: Zinc-plated steel
- Color: White
- Package Quantity: 10 per package
- Weight: 1.59 pounds
- Certifications: UL Listed
- Warranty: Limited 1-year
Standard Information
- Brand: LEVITON MFG CO
- Manufacturer Part Number: S02-05325-0WS
