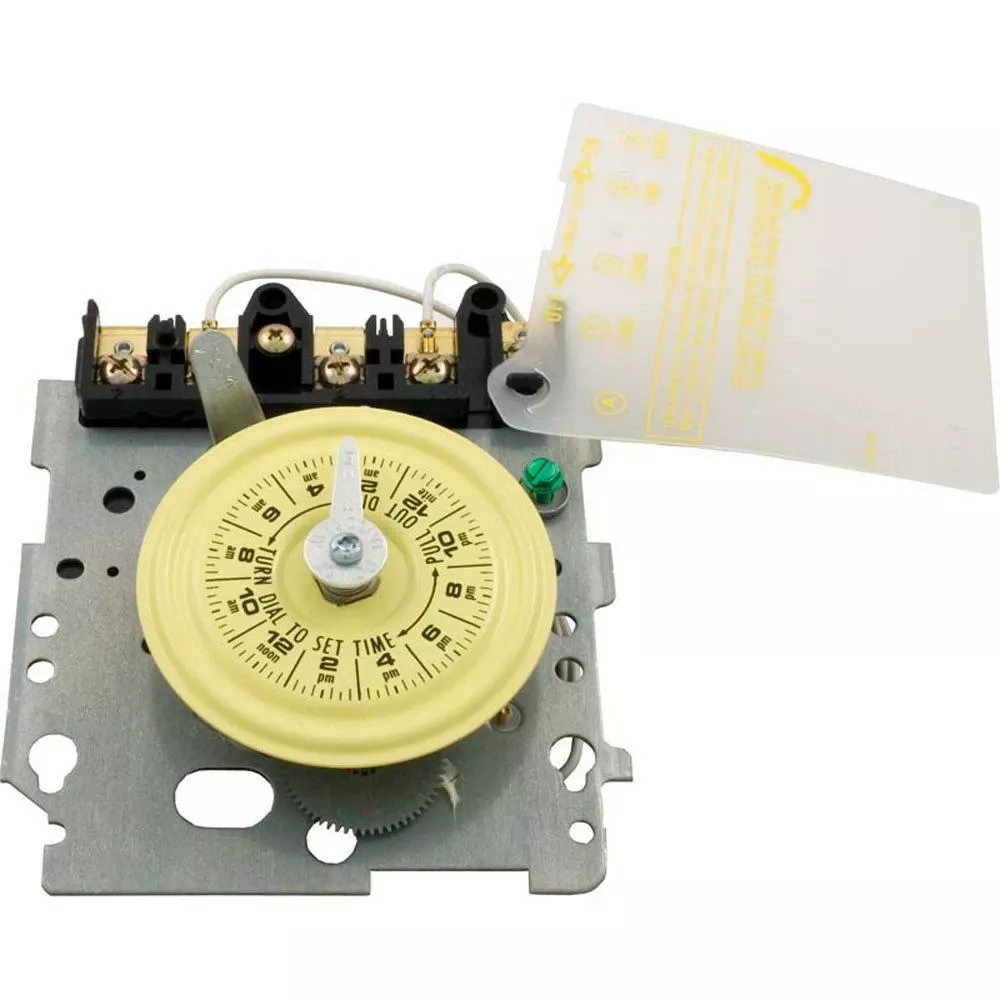

Intermatic T104M | 24-Hour Mechanical Time Switch
Mechanism Only – 208-277V
24-HOUR MECHANICAL TIME SWITCH – MECHANISM ONLY – 208-277V
The T100 Series mechanical time switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.
Features
- Direct 24-hour control of most loads
- Up to 12 ON/OFF operations each day with minimum ON/OFF times of one hour
- Manual override
- One ON and one OFF tripper included
Applications
- Indoor/Outdoor Lighting
- Signs
- Filters
- Electric Fences
- Fans
- Conveyors
- Pool Heaters
- Blowers
- Pumps
- Other Electrical loads
Specifications
- Maximum ON/OFF Operations – 12
- Has Override Switch – No
- Number of Trippers Included – 2
- Number of Circuits – 1
- Operating Temperature Max (°C) 54
- Operating Temperature Max (F) 130
- Operating Temperature Min (°C) -40
- Operating Temperature Min (F) -40
- Warranty 1-year
