C105-238PBAZ, Impeller, Pentair Sta-Rite MaxEPro, 1.5 HP, 2 Speed, 3 Phase

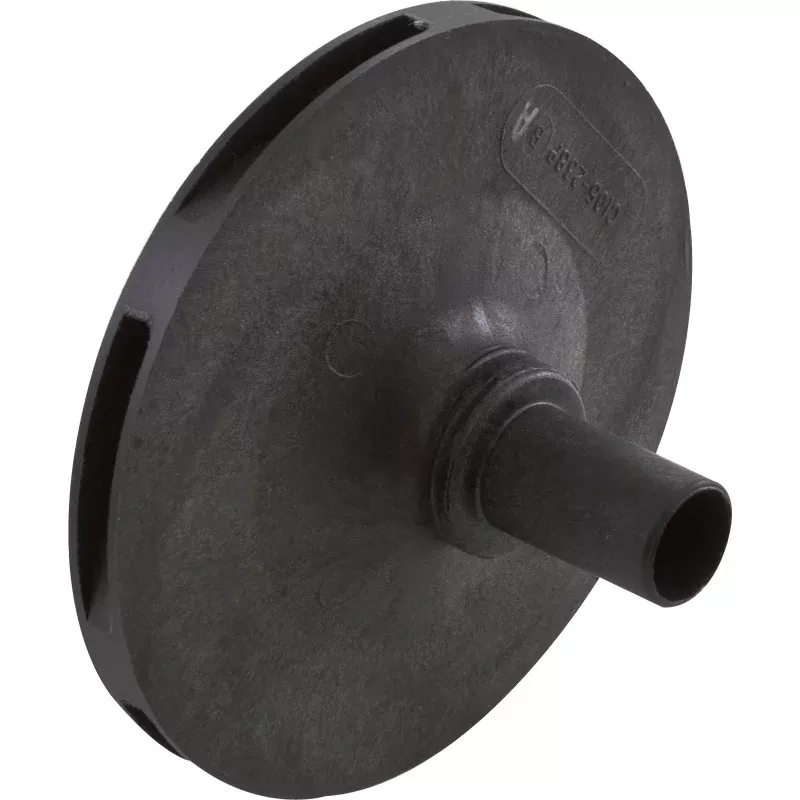

StaRite/Pentair MaxEPro Pump Impeller
Closed face impeller made for the MaxEPro pool pump by Sta-Rite/Pentair. Rated at 1.5hp, it is used in a MaxEPro pump body, and must be installed on a 1.5hp (or greater) square flange motor with a threaded shaft. Shaft seal sold separately.
Product Specifications:Impeller TypeClosed FaceImpeller Diameter OD4-11/16″Vane Width ID1/4″Eye Diameter OD1-7/8″Eye Length5/8″Impeller Width OD3/8″Seal Seat Depth3/4″Shaft Length1-3/16″Shaft Diameter OD3/4″Seal Seat Diameter OD1-3/8″ManufacturerSta-Rite/PentairPump ApplicationDura-Glas, Max-E-Glas
