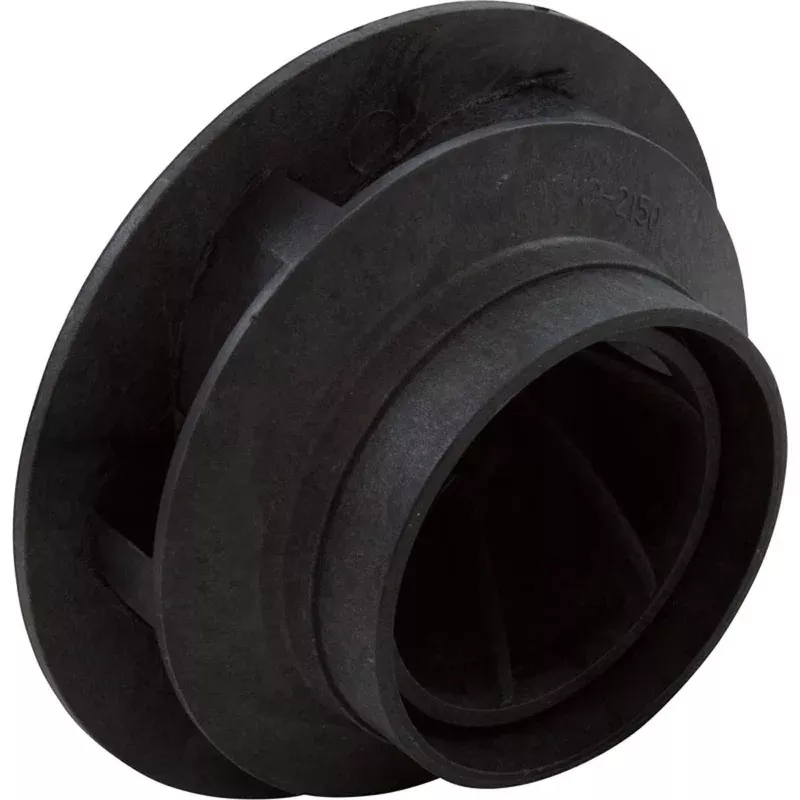

AquaFlo/Gecko XP2E Pump Impeller
Closed face impeller made for the XP2E spa pump by AquaFlo/Gecko. Rated at 1.5hp, it is used in a XP2E wet end, and must be installed on a 1.5hp (or greater) thru bolt motor.
Shaft seal sold separately.
In 2012, the manufacturer changed the way Aquaflo pumps are rated. These pumps are now assigned both an operational horsepower (ohp), and a total horsepower (thp) rating. Previous versions of these pumps used only the operational horsepower. If you are replacing an older Aquaflo pump, be sure to match the operational hp rating rather than the total hp.
1 Yellow, 1 Silver dot on the shaft.
Note: The replacement impeller received may not have the extra wide back plate pictured, and may be stamped as 2hp. It is still the correct replacement.
Product Specifications:Impeller TypeClosed FaceImpeller Diameter OD4-1/2″Vane Width ID1/2″Eye Diameter OD2-5/8″Eye Length11/16″Impeller Width OD3/4″Seal Seat Depth1/8″Shaft Length1-1/2″Shaft Diameter OD5/8″Seal Seat Diameter OD1-1/4″ManufacturerAquaFlo/GeckoPump ApplicationXP2E
