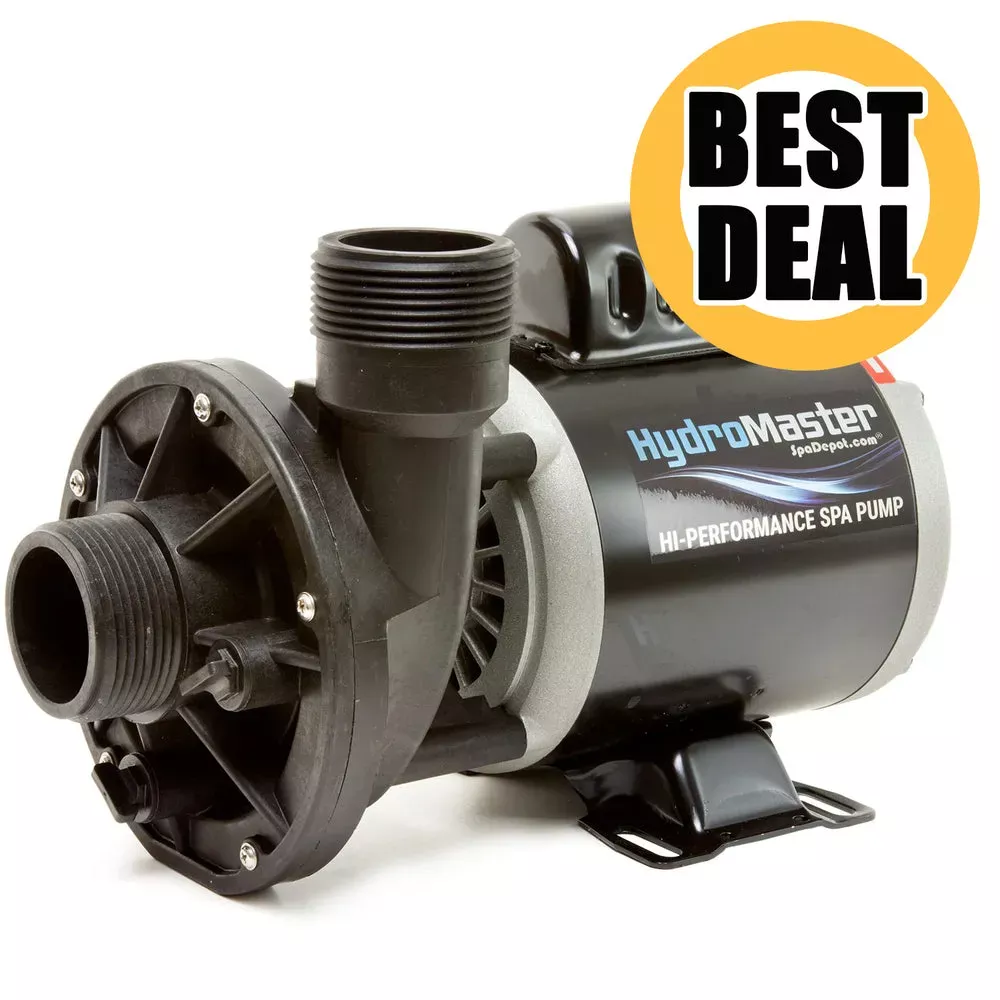

Energy efficient HydroMaster Spa Circulation Pump is endurance proven for continuous 24-hour operation. Ideal replacement for: Aqua-Flo Circ-Master, Waterway Iron Might.
- Configurable for 240V or 120V
- Ideal for high flow 15″x2″ heaters
Product notes: ¹⁄₁₅ HP, 40 GPM. Factory set 240V (0.8A); easily configurable for 120V (1.6A). 1-yr limited warranty.
Details:
Voltage:110-240V
Horsepower:.25 HP
Amperage:1.6A (120V)/.8A (240V)
Gallons Per Minute:40 GPM
Frame Size:48 Frame
Intake:1.5” plumbing (2.375” O.D. pump threads)
Discharge:1.5” plumbing (2.375” O.D. pump threads)
Discharge Type:Side
Wet End Discharge Orientation:Top (can easily be rotated)
Overall Length:12¾”
Waterway Cross Reference:3410020-1E, 3410030-1E, CP181N22A, CP181N11A
Aqua Flo Cross Reference:02093012-2510, 02093000-2010, 02093695-2, 02410512-2, 02093001-2010
Other Cross Reference:1-00-0053, 1-00-0218, 1000218, 1014032, 1030010, 1030011, 1030056, 1030057, 1030125, 1070022, 10-0265-A, 10-0265-4A3-K, 14154, 34-402-1140, 34-343-1020, 48WTC0153C-I, 6500-904, 993-0380A-A6-S, 993-0265A-L48-S, 993-0265A-L48, 993-0265A-A48, A1MB HV, PUULC02513822OSI
Warranty:12 Month Limited Warranty
