- WILL BE REPLACED BY THE CS7509-US When Ordered

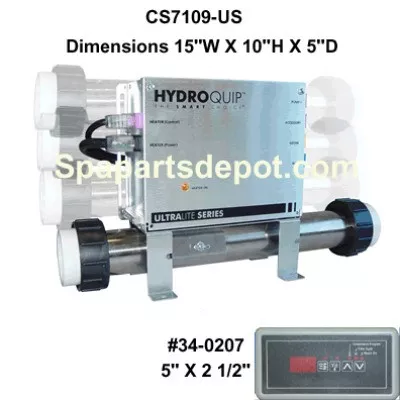

Hydro Quip Digital “Slide” Heater Control – CS7109-US
Operates:
- Pump 1 120V Or 240V 1 Or 2 Speed 13 Amps
- Pump 2 N/A Blower N/A
- Ozone 120V Or 240V 2 Amps
- Circ Pump N/A
- Heater 120V 1.375KW/240V 5.5KW “Slide Heater” 23 Amps
- Light 12V (Non Fiber Optics) 1 Amp
- 2 Year Warranty
Exclusive:
- Smart Freeze Protection
- Brushed Aluminum Enclosure
- Heater “ON” Indicator Light
- Detailed Owners Manual
- Detailed Wiring Diagram
Warranty 2 Years.
Easy Retro For The Following Systems
- Balboa Lite Ldr System 54114-HC
- Brett Aqualine CM-13
- Brett Aqualine BL-50, BL-45
- Will replace Gecko SC-CF-P122-B2-02-CP-NE-LS-HP-AMP-AP2 If no circ. pump
- Brett Aqualine EM-100 Without Bolwer
3-70-0801HQS
CS7109-US
CS7109-US-15A
