Hayward Field Wiring Panel Kit for FD Series Pool Heaters | FDXLFWP1930

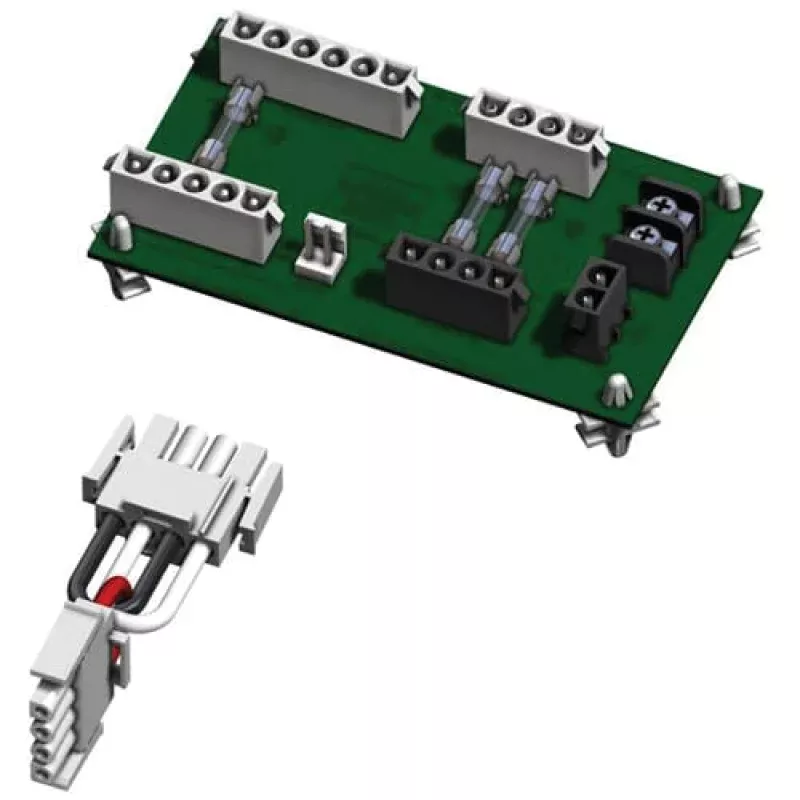

The Hayward Field Wiring Panel Kit (FDXLFWP1930) is the OEM replacement field wiring panel kit for Hayward FD Series pool heaters.

IMPORTANT: PROFESSIONAL SERVICE REQUIRED
Gas and electrical heater components must be serviced by a licensed pool professional or qualified HVAC technician. Do not attempt to service gas or high-voltage components without proper certification.

This field wiring panel kit provides the dedicated electrical interface panel used to connect field-supplied wiring to the heater’s internal control circuitry, ensuring correct signal routing and protection for the heater’s control system.

Specifications

Poolaroo Pro Tip

Before ordering, confirm your heater’s model number from the rating plate located on the unit itself not from the original installation paperwork, which may not reflect field modifications. This panel kit is specific to the FD (field-wiring) configuration; verify your heater carries an “FD” designation in the model number before purchasing. All field wiring work must be performed by a licensed professional in accordance with applicable electrical codes.
