Product Description

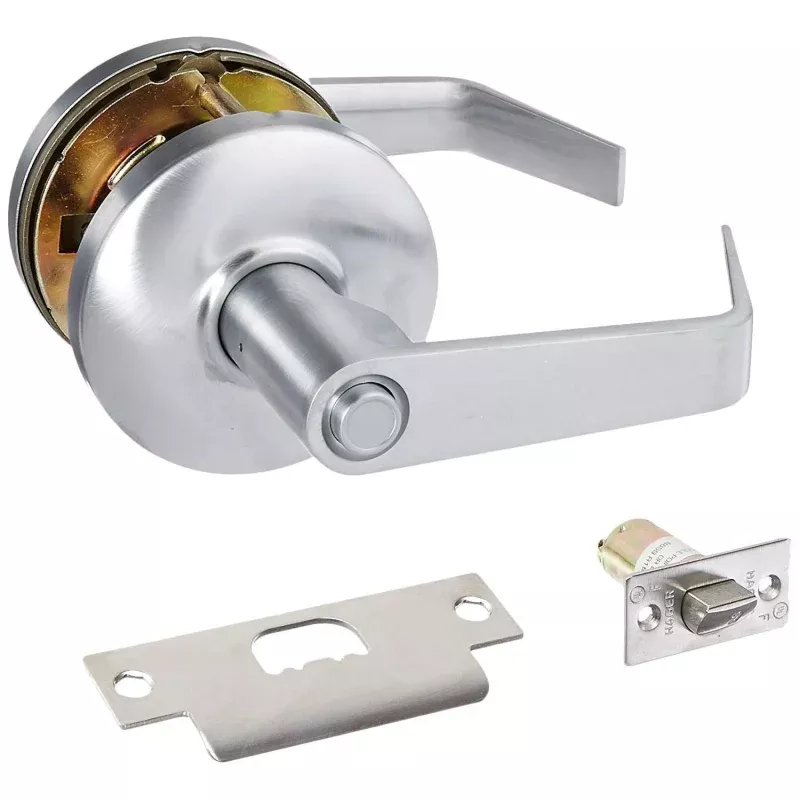

The HAGER HINGE 3540WTN26D is a Withnell lever privacy cylindrical lock with a satin chrome finish, designed for interior door applications where privacy locking is required. This cylindrical lockset installs into a standard door prep and provides a push-button or turn-button privacy function suitable for bathrooms, bedrooms, and similar spaces. The satin chrome finish delivers a neutral, low-glare appearance compatible with a wide range of door hardware finishes. At 4.3 pounds, the unit is a full-assembly lockset ready for installation by a licensed locksmith, door hardware installer, or general contractor.
This privacy cylindrical lock is suited for light commercial and residential interior door applications. Typical installations include restroom doors, bedroom doors, and private office entries where occupancy indication or one-sided locking is needed but a keyed entry function is not required. The Withnell lever trim style provides an ergonomic grip and meets lever-style accessibility requirements common in commercial door hardware specifications.
Key Features
- Privacy function cylindrical lockset with push or turn-button locking mechanism
- Withnell lever trim style with accessible lever design
- Satin chrome (26D) finish for a clean, low-glare appearance
- Full lockset assembly weighing 4.3 pounds
- Sold individually; case quantity of 6 available for larger projects
Compatibility
Designed as an OEM-style cylindrical privacy lockset replacement or new installation fitting standard residential and light commercial door preparations for cylindrical locksets.
Installation Notes
Installation should be performed by a qualified door hardware technician, licensed locksmith, or general contractor familiar with cylindrical lockset installation procedures. Verify door thickness and backset dimensions before installation to confirm proper fit. Ensure the door and frame are properly aligned and that the latch bolt engages the strike plate squarely before completing installation. Follow all applicable building codes and ADA lever requirements for commercial applications.
Technical Specifications
- Finish: Satin Chrome (26D)
- Function: Privacy
- Trim Style: Withnell Lever
- Lock Type: Cylindrical
- Length: 8.3 inches
- Width: 7.4 inches
- Height: 3.9 inches
- Weight: 4.3 pounds
- Sales Unit: Each
- Case Quantity: 6
Standard Information
- Brand: HAGER HINGE
- Manufacturer Part Number: 3540WTN26D
