All S-Classes have been discontinued.
Use this unit for a replacement, you will need new cords for Pump/ Blower Click Here
CHECK MODEL NUMBER BELOW FOR ANY MODIFICATIONS THAT MAY BE NEEDED

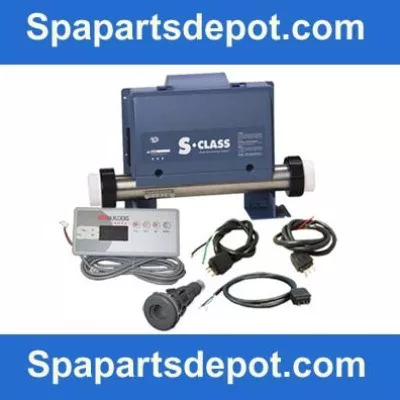

BUNDLE INCLUDES:
- 3-72-7079 Control SSPA
- 3-00-7219 Topside K19 w/3 overlays
- 5-50-0058 Cord MJJ Pump
- 5-50-0055 Cord MJJ Ozone
- 5-50-0056 Cord MJJ Pump
- 4-30-7001 Thermowell
Outputs for:
- Pump 1 (dual-speed)
- Pump 2 or Blower (single-speed)
- Heater
- Light
- Ozonator
Features
- Automatic time-out on all outputs
- 3-digit LED display
- Digital temperature display
- Sensor failure detection
- Ozone management
- Air channel clean-out
- Programmable filter cycles
- High-limit protection
- Pressure switch failure detection
- Current limiting option
- Smart Winter Mode
- Temp. accuracy within 1F
- CoolRays and fiber light compatible
- Overtemp protection
- Filter cycle overtemp protection
- CE & AS version available
Replaces The Following Models And More!
SSPA-1-P121-LS-JJM-RL
0202-205066 Direct Drop-in
SSPA-1-P122-P212-O1-LS-H5.5-JJM-RL
0202-205002 Direct Drop-in
SSPA-1-P122-B2-O1-LS-H5.5-JJM-AL
0202-205008 Direct Dropin
SSPA-1-P122-O1-NE-LS-H5.5-JJM-RL-AL
0202-205009 Direct Drop-in
SSPA-1-P122-P212-O1-LS-JJM-RL
0202-205011 Direct Dropin
SSPA-1-P122-B1-O1-LS-JJM
0202-205013 Direct Drop-in == SSPA-1-P122-B1-O1-LS-H5.5-JJM-RL
0202-205015 Direct Drop-in
SSPA-1-P121-NE-LS-H1.0-WK
0202-205016 If keypad with a special shape, will have to change the keypad for a 3-00-7251A. If a TSC-9, change the overlay for a 3-05-7099 / Functionnalities different
SSPA-1-P122-P212-O1-LS-H4.0-D1
0202-205017 If single pump system, change the overlay for a 3-05-7099 / If dual pump system, change the overlay for a 3-05-7106 / Auxiliary switch not compatible anymore
SSPA-1-P122-B2-O1-NE-LS-H5.5-JJM-RL-AL
0202-205018 Direct Drop-in
SSPA-MP-P122-P212-O1-NE-LS-FB-JJM-LA
0202-205027 No FB output / Will need to change the overlay, no more ozone icon: 1 pump system 3-05-7092; 2 pumps system 3-05-7104; 1 pump + blower 3-05-7123
SSPA-1-P122-P212-O1-LS-JJM
0202-205031 Direct Drop-in
SSPA-1-P121-O1-LS-JJM
0202-205033 Direct Drop-in
SSPA-1-P122-P212-O1-NE-LS-H5.5-JJM-RL-CC2
0202-205034 Direct Drop-in
SSPA-1-P122-O1-NE-LS-H5.5-JJM-RL-CC
0202-205035 Direct Drop-in
SSPA-1-P122-B1-O1-NE-LS-JJM-MG1
0202-205038 No more standby mode / Functionnalities different
SSPA-1-P122-B1-O1-NE-LS-H5.5-JJM-SU1
0202-205040 Direct Drop-in
SSPA-1-P122-B2-O1-LS-H5.5-JJM
0202-205043 Direct Drop-in
SSPA-1-P122-P212-O1-LS-H5.5-JJM
0202-205045 Direct Drop-in
SSPA-1-P122-O1-LS-H5.5-JJM
0202-205045 Direct Drop-in
SSPA-1-P121-NE-LS-WK
0202-205055 If keypad with a special shape, will have to change the keypad for a 3-00-7251A. If a TSC-9, change the overlay for a 3-05-7099. Functionnalities different
SSPA-1-P121-O1-LS-H5.5-JJM
0202-205060 Direct Drop-in
SSPA-1-P121-LS-JJM-RL
0202-205066 Direct Drop-in
SSPA-1-P121-O1-NE-LS-FB-H5.5-AMP-GP2
0202-205069 If the pack is changed, the overlay will need to be changed because of the ozone led TSC-18 3-05-7105 / No FB output
SSPA-1-P122-O1-LS-H4.0-JJC
0202-205073 Direct Drop-in
SSPA-1-P121-O1-NE-LS-H1.0-RL-JJM-WK2
0202-205077 Will need to change the overlay(3-05-7099) / no more display disabling(jumper 3) / no more tranquill mode / Different way of programming filtration cycle / Functionnalities different / No plugs on the pack anymore
SSPA-1-P121-O1-NE-LS-RL-JJM-WK2
0202-205078 Will need to change the overlay(3-05-7099) / no more display disabling(jumper 3) / no more tranquill mode / Different way of programming filtration cycle /
SSPA-1-P122-02-LS-H4.0-JJM-HI
0202-205081 No clean-up or standby mode / Functionnalitie different
SSPA-1-P122-B2-O1-NE-LS-H5.5-JJM-DY1
0202-205086 Direct Drop-in
SSPA-1-P121-P211-O1-NE-LS-H4.0-WK2
0202-205092 If using a special shaped keypad, change the keypad for a 3-00-7218. If a TSC-18 single pump system, change the overlay for a 3-05-7091. If a TSC-18 dual pump system, change the overlay for a 3-05-7105 / Functionalities different
SSPA-1-P122-O2-LS-FB1-H4.0-JJM-HI
0202-205097 No clean-up or standby mode / No fiber optic output / Functionnalities different
SSPA-1-P122-O1-NE-LS-H4.0-JJC
0202-205099 Direct Drop-in
SSPA-1-P122-O2-NE-LS-H4.0-JJC-T2
0202-205100 Replace transformer by a 5-30-7019 / No plugs on the pack anymore
SSPA-1-P122-P212-O1-LS-H5.5-JJM
0202-205105 Direct Drop-in
SSPA-1-P122-P211-O1-NE-LS-WK2
0202-205106 If using a special shaped keypad, change the keypad for a 3-00-7218. If a TSC-18 single pump system, change the overlay for a 3-05-7091. If a TSC-18 dual pump system, change the overlay for a 3-05-7105 / Functionalities different
SSPA-1-P122-O1-NE-LS-H5.5-JJC-HY1
0202-205108 Direct Drop-in
SSPA-1-P122-O1-NE-LS-JJM-MA2
0202-205112 Direct Drop-in
SSPA-1-P122-P212-O1-NE-LS-H4.0-JJM-DY1
0202-205118 Direct Drop-in
SSPA-1-P122-O1-NE-LS-H4.0-JJM-DY2
0202-205119 Direct Drop-in
SSPA-1-P122-P212-O2-NE-LS-T2-H1.0-WK2
0202-205126 If using a special shaped keypad, change the keypad for a 3-00-7218. If a TSC-18 single pump system, change the overlay for a 3-05-7091. If a TSC-18 dual pump system, change the overlay for a 3-05-7105 / Functionalities different / Transformer is now a 120VAC so change the transformer for a 5-30-7019
SSPA-1-P122-P212-O1-NE-LS-H4.0-JJM-RL-CC3
0202-205127 Direct Drop-in
SSPA-1-P121-O1-NE-LS-H4.0-JJC-MB2
0202-205129 Direct Drop-in
SSPA-1-P122-P212-O1-NE-H4.0-JJC-RL-CC4
0202-205130 Direct Drop-in
SSPA-1-P122-P212-O1-NE-H4.0-RL-FB1-JJC-CC5
0202-205143 IR sensor not compatible anymore
SC-CF-P122-P212-01-AU11-H4.0- U-RL-JJC-NE-CC7
0202-205156 IR sensor not compatible
SC-1-P122-P212-01-NE-H4.0-RL- AU1-JJC-CC6
0202-205201 Direct Drop-in
SC-CF-P12-P21-O-LS-H5.5-U-RL-WK1
0202-205211 If a 2 pumps system will need to change the overlay for a 3-05-7105 / Different functionalities
SC-CF-P121-P211-01-LS-H5.5-U-JJC-NE-SBD
0202-205215 Direct Drop-in
SSPA-1-P122-O1-LS-JJM-PP
0202-207001 Direct Drop-in
SSPA-1-P121-P211-O1-NE-LS-H4.0-JJC-PPD
0202-207005 Direct Drop-in
SSPA-1-P121-LS-H1.38-JJM-RL-PP
0202-207006 Direct Drop-in
SSPA-1-P122-LS-H5.5-JJM-PP
0202-207007 Direct Drop-in
SSPA-1-P121-P211-O1-NE-LS-JJC-PPD
0202-207009 Direct Drop-in
B-SC-MP-P12-P2-O-L-IR-U-CC5
3-62-7017 IR sensor not compatible
SC-CF-P121-NE-LS-H1.0-WK
3-72-7006 Will need to change the overlay(3-05-7099) / no more display disabling(jumper 3) / no more tranquill mode / Different way of programming filtration cycle / Functionnalities different
SC-CF-P121-O1-NE-LS-H1.0 RL-JJM-WK2
3-72-7007 Will need to change the overlay(3-05-7099) / no more display disabling(jumper 3) / no more tranquill mode / Different way of programming filtration cycle / Functionnalities different
SC-CF-P121-O1-LS-U-RL-JJM-NE- WK2
3-72-7009 Will need to change the overlay(3-05-7099) / no more display disabling(jumper 3) / no more tranquill mode / Different way of programming filtration cycle / Functionnalities different
SC-CF-P121-P211-O1-NE-LS H4.0-WK2
3-72-7011 If using a special shaped keypad, change the keypad for a 3-00-7218. If a TSC-18 single pump system, change the overlay for a 3-05-7091. If a TSC-18 dual pump
SC-CF-P122-B1-O1-LS-U-JJC NE-MG1
3-72-7014 No more standby mode / Functionnalities different
SC-CF-P122-O1-LS-U-JJM-NE-MA2
3-72-7021 Direct Drop-in
SC-CF-P121-P211-O1-LS-U-NE- WK2
3-72-7023 If using a special shaped keypad, change the keypad for a 3-00-7218. If a TSC-18 single pump system, change the overlay for a 3-05-7091. If a TSC-18 dual pump system, change the overlay for a 3-05-7105 / Functionalities different
SC-CF-P122-O1-LS-H4.0-U-JJC- NE-DY2
3-72-7048 Direct Drop-in
SC-CF-P122-O2-LS-H5.5-U-JJC- NE-RW2
3-72-7070 Direct Drop-in
SC-CF-P121-P211-01-LS-H4.0-U- JJC-NE-SBD
Direct Drop-in
SC-CF-P122-P212-01-LS-H4.0-U -JJC-NE-DY3
3-72-7080 Direct Drop-in
SC-CF-P122-B1-01-LS-U-JJM-NE SU1
3-72-7086 Direct Drop-in
SC-CF-P122-01-LS-U-JJM-NE-SA2
3-72-7100 Direct Drop-in
SC-CF-P122-P212-01-LS-H4.0-U -JJC-NE-TR1
3-72-7086 Direct Drop-in
SC-CF-P122-P212-01-AU11-LS- H4.0-U-JJC-NE-SA3
3-72-7131 Direct Drop-in
SC-CF-P121-P211-01-LS-U-JJC- NE-SBD
3-72-7136 Direct Drop-in
SC-CF-P122-P212-O1-AU11-LS-U- JJC-NE-SA4
3-72-7140 Direct Drop-in
SC-CF-P122-P212-01-LS-H4.0-U -JJC-NE-HY5
3-72-7141 Direct Drop-in
SC-CF-P121-P211-01-LS-H4.0- U-IF-JJC-NE-SBD
3-72-7143 Direct Drop-in
SC-CF-P122-P212-01-AU12-LS-H4.0-U-JJC-NE-PD1
3-72-7147 Direct Drop-inSC-CF-P122-P212-01-AULL-H4.0-U-RL-JJC-NE-CC5
- 0202-207005
- 3-72-7013
Note: 220V systems are neutral required – 4-wire systems S-Class can use K-9 Oval or K-18 or K-19 Topsides. Pump 2 is single speed only.
You can substitute a blower if required.
CTRL SSPA-1-P121-P211-01-NE-LS
