Product Description

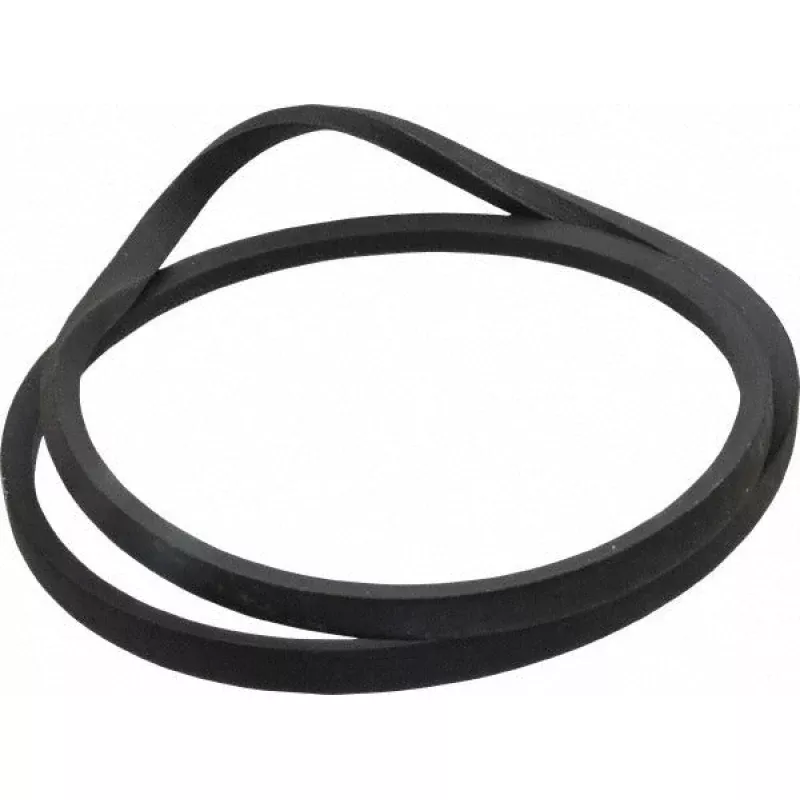

The CONTINENTAL CONTITECH 20042082 is a Section B classical V-belt designed for power transmission in HVAC, industrial fan, and mechanical drive applications. Constructed from Wingprene rubber-impregnated fabric, this belt delivers reliable flex and heat resistance across a wide operating temperature range of -40 degrees F to 284 degrees F (-40 C to 140 C). With a 67.0-inch outside length and an internal length of 65.80 inches, it conforms to the B64 belt designation. This belt weighs 0.7 pounds and is a direct fit for standard B-section sheaves and pulleys used throughout trade and light-industrial equipment.
Section B V-belts are a standard belt profile found in residential and commercial HVAC systems, refrigeration condenser fan drives, air handling units, and general mechanical equipment. The B64 designation identifies this as a belt with 67 inches of outside circumference, fitting standard B-section grooved sheaves commonly found on blower assemblies, compressors, and pump drives. Licensed HVAC technicians, millwrights, and mechanical contractors install this type of belt as a routine maintenance replacement on belt-driven fan and blower systems.
Key Features
- Section B profile with 67.0-inch outside length and 65.80-inch internal length for standard B64 fitment
- Wingprene rubber-impregnated fabric construction for flex durability and oil resistance
- Wide operating range from -40 degrees F to 284 degrees F supports demanding environments
- HY-T Matchmaker style design for consistent cross-section geometry in matched-set applications
- Single-belt packaging with an MOQ of 1 for replacement and service use
Compatibility
Designed as a standard OEM-style replacement for Section B V-belt applications requiring a B64 belt. Fits any standard B-section grooved sheave or pulley system rated for this outside length.
Installation Notes
Belt-driven systems must be de-energized and locked out before belt removal or installation. HVAC technicians should verify sheave alignment with a straightedge or laser tool before installing the new belt to prevent premature wear. Adjust drive tension per equipment manufacturer specifications after installation, then re-check tension after initial run-in. Do not pry belts over sheave flanges, as this can damage the belt cord structure.
Technical Specifications
- Belt Section: B
- Belt Number: B64
- Outside Length: 67.0 inches
- Internal Length: 65.80 inches
- Style: HY-T Matchmaker
- Material: Wingprene Rubber-Impregnated Fabric
- Maximum Working Temperature: 140 degrees C (284 degrees F)
- Minimum Working Temperature: -40 degrees C (-40 degrees F)
- Weight: 0.7 pounds
Standard Information
- Brand: CONTINENTAL CONTITECH
- Manufacturer Part Number: 20042082
