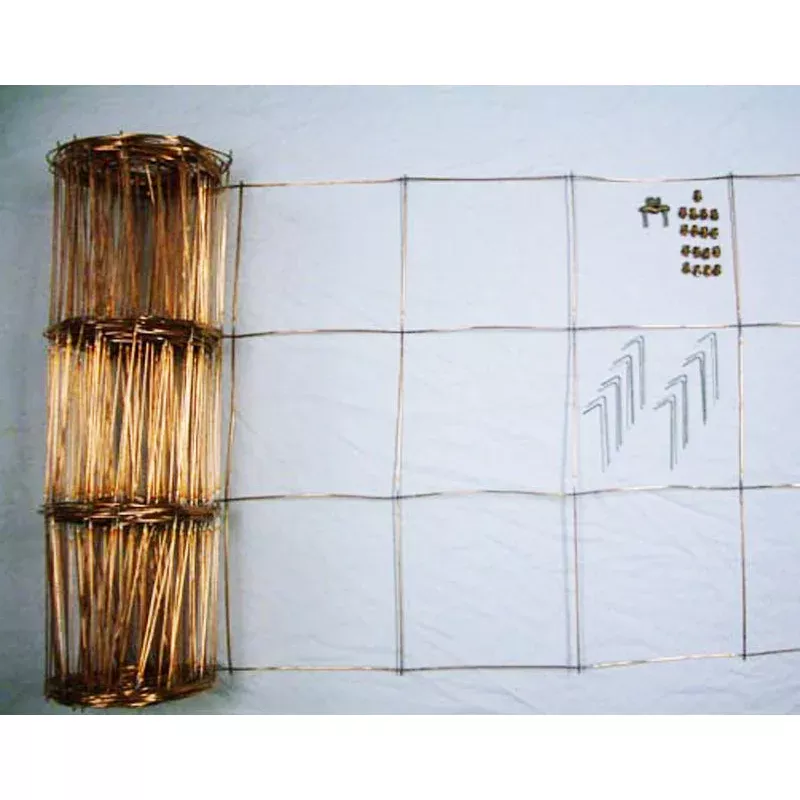

The CMI EB3100 EquiBond is a pre-fabricated 3-foot by 100-foot copper equipotential bonding grid kit. It protects pool decks from stray voltage and ensures full compliance with NEC Section 680.26(C). Built from exothermically welded 8 solid bare copper on 12-inch centers, this roll-out grid installs rapidly without hand-tying.
PRO TIP
The EB3100 must be installed beneath the paved surface, 3 feet out from the inside edge of the pool. Use the included rebar clamps to connect the grid to the pool’s structural rebar, and the 8 split bolts to tie the corners together. A single installer can complete the job without special tools simply unroll, stake, and clamp.
PRODUCT FEATURES
- Pre-Fabricated Grid: 8 solid bare copper eliminates hand-tying and saves labor.
- Exothermic Welds: Intersections welded on 12-inch centers for a permanent molecular bond.
- Code Compliant: Meets NEC 680.26(C) equipotential bonding requirements for permanently installed pools.
- Complete Kit: Includes UL-listed rebar clamps, 17 8 split bolts, and 16 metal stakes
TECHNICAL SPECIFICATIONS
- Brand: CMI (EquiBond)
- Part Number (MPN): EB3100
- UPC/GTIN: 783935958232
- Dimensions: 3 ft wide 100 ft long
- Conductor: 8 Solid Bare Copper
- Grid Spacing: 12 inches on center
- Connections: Exothermically Welded
- Code Compliance: NEC Section 680.26(C)
- Weight: 37.65 lb
Frequently Asked Questions (FAQ)
Where do I install the EB3100 bonding grid? The grid must be installed beneath the paved surface, extending 3 feet out from the inside edge of the pool. Use the included rebar clamps to connect the grid to the pool’s structural rebar.
Are special tools required for installation? No. A single installer can roll out, stake, and clamp the grid using standard hand tools. Split bolts are provided to tie the corners together.
