Discontinued will be replaced with 50-BP7-600-55-K 5.5 kw Heater or you can go with 50-BP7-600-40-K 4.0 kw Heater
Will replace 11418, Dynasty Spa Pack, MC-MP, With Heater, 3 Pump (2-2,1-1),
50-BP7-600-55-K OR 50-BP7-600-55-K
Retrofit Kit, Balboa BP7, 5.5KW OR 4.0KW Heater, 1-2 Pumps w/TP600 Topside & Light Cord
220 -240 volts 60HZ only, cannot run on 120 volts,
5.5KW OR 4.0KW heater
Operate With TP600 Topside:
– Pump 1 – 1 or 2 speeds (Default setting 2 speed, can be changed)
– Pump 2 1 or 2 speeds
– Pump 3 – 1 speed (With TP600)
– Dedicated circulation pump, (min 20 GPM and min 1.5″ plumbing required- Ozonator
M7/8 Patented Sensor heater technology
Wifi: Compatible withboa ControlMySpa WiFi (Sold Separately)
Balboa Bluetooth Audio compatible, module 59089 sold separatelyes with an adaptor plate
Spa light control 1 Amp max
60 Amp GFCI required if running more than pump
Component Configuration – Pump1 + Pump2/Blower (+ Pump3 W/TP600 or larger)
This system comes with a light cord, item number 21089; All other cords sold separately.
: VS300, VS500, VS501Z, VS501SZ VS503SZ, VS504SZ, VS511Z VS511SZ, VS510SZ, VS510 VS513Z VS514SZ, VS515Z, VS515SZ, VS520Z, VS520SZ, VS520DZ,525

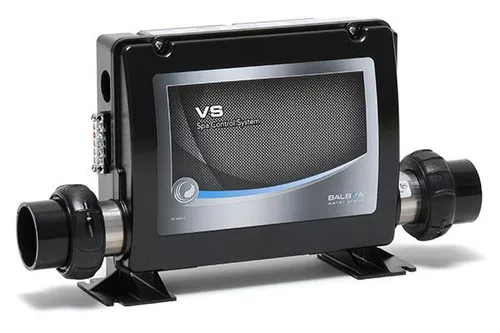

Balboa VS501Z System Control Box ONLY, NO TOPSIDE OR CORDS
54218-Z 54218
| KIT P/N | 54216-Z | 54217-Z | 54218-Z | 54219-Z | 54220-Z |
| System | VS500Z | VS501Z | VS510SZ | VS500Z | VS501Z |
| Heater | Yes (5.5kW Stainless Steel Flow Thru) | ||||
| M7 | Yes (No Pressure Switch) | ||||
| 2spd Pump (120/240) | Yes | Yes | Yes | Yes | Yes |
| 1spd Pump (240) | No | No | Yes | No | No |
| Blower (120/240) | No | Yes or 1spd Pump | Yes | No | Yes or 1spd Pump |
| Ozone (120/240) | Yes | Yes | Yes | Yes | Yes |
| Spa Light (12V/12W) | Yes | Yes | Yes | Yes | Yes |
| Panel Model | Lite Duplex | Lite Duplex | Serial Standard | Mini-Oval | Mini-Oval |
| Panel Dimensions (in) |
6.32 x 2.25 | 6.32 x 2.25 | 7.35 x 3.26 | 4.34 x 1.58 | 4.34 x 1.58 |
| Panel Dimensions (cm) |
16.05 x 5.72 | 16.05 x 5.72 | 18.67 x 8.28 | 11.02 x 4.01 | 11.02 x 4.01 |
| Parts Included | Cords, Bezel, one 12V bulb assembly |
Retrofit Kit With Our GS Systems
