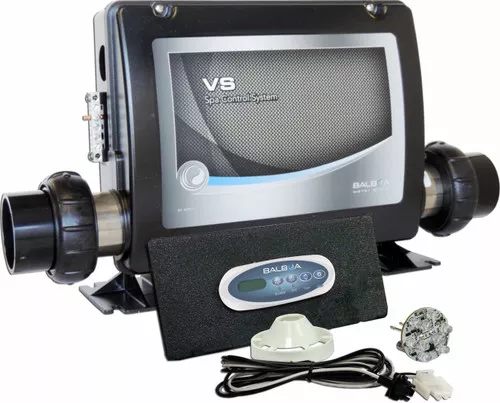

We will be shipping a Balboa BP7 Retrofit Spa Control Kit w/TP200 Topside Control Panel, 1.5/5.5kW HeaterTP500 Topside 6.32″ x 2.25″BALBOA VS501Z RETRO-FIT KIT COMPLETE / MINI-OVAL / RETRO-FIT BEZEL W/ CORDS ( PUMP 1, BLOWER or PUMP 2, LIGHT, OZONE) – 54220-Z 3-70-0804Balboa 54356-HC 54220-Z VS501Z Retrofit Kit Complete
Balboa PN-54356 Kit Includes:
- BALBOA PN-11127 Overlay
- Spa Light Assembly, without Lens
- 120V/240V Convertible System DUPLEX
- One 2-spd Pump Cord, Two 1-spd. Pump Cord
- BALBOA PN-11718 Retro-fit Topside Adapter
- BALBOA PN-54356-HC VS501Z System 120V/240 with Cords
- BALBOA PN-52144 Mini-oval Topside Panel (Buttons are 1 Pump, Light, Blower And Temp)
- M7 Technology (No Pressure Switch)
- 54220-Z 54220
3-70-0804
| KIT P/N | 54216-Z | 54217-Z | 54218-Z | 54219-Z | 54220-Z |
| System | VS500Z | VS501Z | VS510SZ | VS500Z | VS501Z |
| Heater | Yes (5.5kW Stainless Steel Flow Thru) | ||||
| M7 | Yes (No Pressure Switch) | ||||
| 2spd Pump (120/240) | Yes | Yes | Yes | Yes | Yes |
| 1spd Pump (240) | No | No | Yes | No | No |
| Blower (120/240) | No | Yes or 1spd Pump | Yes | No | Yes or 1spd Pump |
| Ozone (120/240) | Yes | Yes | Yes | Yes | Yes |
| Spa Light (12V/12W) | Yes | Yes | Yes | Yes | Yes |
| Panel Model | Lite Duplex | Lite Duplex | Serial Standard | Mini-Oval | Mini-Oval |
| Panel Dimensions (in) |
6.32 x 2.25 | 6.32 x 2.25 | 7.35 x 3.26 | 4.34 x 1.58 | 4.34 x 1.58 |
| Panel Dimensions (cm) |
16.05 x 5.72 | 16.05 x 5.72 | 18.67 x 8.28 | 11.02 x 4.01 | 11.02 x 4.01 |
| Parts Included | Cords, Bezel, one 12V bulb assembly |
Retrofit Kit With Our GS Systems
