Will be sending Balboa BP7 Retrofit Spa Control Kit w/TP200 Topside Control Panel, 1.5/4kW HeaterCORDS ARE SOLD SEPARATELYBalboa VS500Z Wiring Diagram

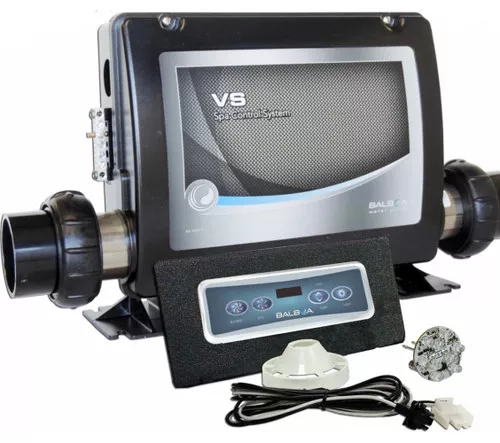

VS500Z Retrofit Kit Complete
- Comes With 2-spd Pump Cord, 1-spd Pump Cord, Ozone Cord, Spa Light Assembly, 12V Light Bulb, 3 Button Mini Oval Digital Topside Control, Face Plate Adapter And Comes Standard With Two Inch Heater Tail Pieces. IF you need 1 1/2″ Tail Pieces Please Request. ALL VS SYSTEMS COME STANDARD WITH 2″ TAIL PIECES.
This kit includes:
PN-54368-HC VS500Z System 120V/240 with Cords 2-spd Pump Cord, 1-spd. Pump Cord Spa Light Assembly, W/O Lens Just Wiring Harness And Shroud
PN-54105 Lite Duplex Topside Panel (Buttons are 1 Pump, Light, No Blower)
PN-11109 Retro-fit Topside Adapter
54216-Z 54216
| KIT P/N | 54216-Z | 54217-Z | 54218-Z | 54219-Z | 54220-Z |
| System | VS500Z | VS501Z | VS510SZ | VS500Z | VS501Z |
| Heater | Yes (5.5kW Stainless Steel Flow Thru) | ||||
| M7 | Yes (No Pressure Switch) | ||||
| 2spd Pump (120/240) | Yes | Yes | Yes | Yes | Yes |
| 1spd Pump (240) | No | No | Yes | No | No |
| Blower (120/240) | No | Yes or 1spd Pump | Yes | No | Yes or 1spd Pump |
| Ozone (120/240) | Yes | Yes | Yes | Yes | Yes |
| Spa Light (12V/12W) | Yes | Yes | Yes | Yes | Yes |
| Panel Model | Lite Duplex | Lite Duplex | Serial Standard | Mini-Oval | Mini-Oval |
| Panel Dimensions (in) |
6.32 x 2.25 | 6.32 x 2.25 | 7.35 x 3.26 | 4.34 x 1.58 | 4.34 x 1.58 |
| Panel Dimensions (cm) |
16.05 x 5.72 | 16.05 x 5.72 | 18.67 x 8.28 | 11.02 x 4.01 | 11.02 x 4.01 |
| Parts Included | Cords, Bezel, one 12V bulb assembly |
Retrofit Kit With Our GS Systems
VS500
