Discontinued will be replaced with 50-BP7-600-55-K 5.5 kw Heater or you can go with 50-BP7-600-40-K 4.0 kw Heater
Balboa VS510Z Wiring Diagram

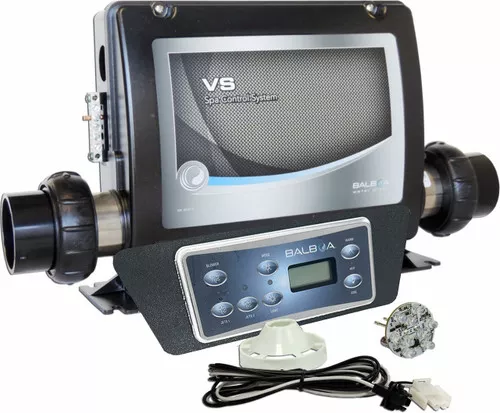

BALBOA VS510SZ RETRO-FIT KIT COMPLETE / SERIAL STD / RETRO-FIT BEZEL W/ CORDS (PUMP 1, PUMP 2, BLWR, LIGHT, OZONE) 54218-Z 3-70-0803
50-BP7-600-55-K OR 50-BP7-600-55-K
Retrofit Kit, Balboa BP7, 5.5KW OR 4.0KW Heater, 1-2 Pumps w/TP600 Topside & Light Cord
220 -240 volts 60HZ only, cannot run on 120 volts,
5.5KW OR 4.0KW heater
Operate With TP600 Topside:
– Pump 1 – 1 or 2 speeds (Default setting 2 speed, can be changed)
– Pump 2 1 or 2 speeds
– Pump 3 – 1 speed (With TP600)
– Dedicated circulation pump, (min 20 GPM and min 1.5″ plumbing required- Ozonator
M7/8 Patented Sensor heater technology
Wifi: Compatible withboa ControlMySpa WiFi (Sold Separately)
Balboa Bluetooth Audio compatible, module 59089 sold separatelyes with an adaptor plate
Spa light control 1 Amp max
60 Amp GFCI required if running more than pump
Component Configuration – Pump1 + Pump2/Blower (+ Pump3 W/TP600 or larger)
This system comes with a light cord, item number 21089; All other cords sold separately.
: VS300, VS500, VS501Z, VS501SZ VS503SZ, VS504SZ, VS511Z VS511SZ, VS510SZ, VS510 VS513Z VS514SZ, VS515Z, VS515SZ, VS520Z, VS520SZ, VS520DZ,525
